COMPLETE FORKS CHROME 6.00

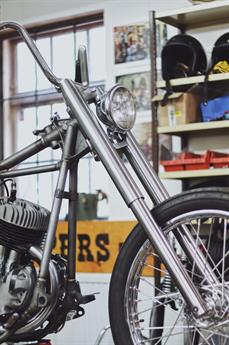

PICTURED IS A SETUP WITH 6.77" TRIPLE TREES  AND +4" FORK LEGS

Complete front end with fork covers. Tubes and internals are 77-84.

1" stem

Handlebar spacing 3.5"

Wheel axle is 3/4" (except if you choose 6.77" trees and lowers with brake tab then the axle is 17mm)

STEP 1

Choose chrome or parkerized.

STEP 2

Choose your triple trees.

6.00" center to center. Wheel clearance 3.75"

6.77" center to center. Wheel clearance 4.5"*

7.875" center to center. Wheel clearance 5.625"

STEP 3

Choose your length.

Fork lowers are STD length. Tubes and covers increase correspondingly.

*OPTIONAL STEP 4

If you choose 6.77" triple trees you have the option to choose the lowers with a right side brake tab to run a k-model or hamburger hub. All the neccesary parts will be included for a bolt on setup.

Fill each leg with 7 fl oz (2.1dl) fork oil.

MADE TO ORDER. EXPECT 8-10 WEEKS LEAD TIME.
